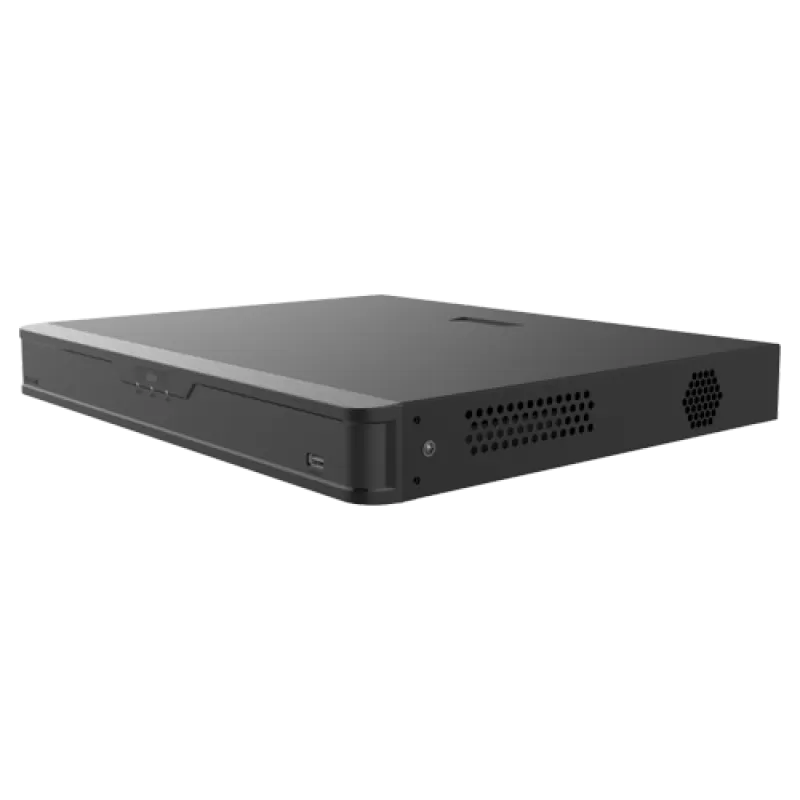

XVR Hibrid de la Uniview, suporta camere analog HD si IP cu rezolutie de pana la 8MP, capacitate 32 canale Analog + 4 canale IP (sau pana la 36 canale IP, dupa conversia camerelor analog): TVI/AHD/CVI/CVBS/IP, playback sincron pe 16 canale la o rezolutie maxima de 4K prin HDMI si 2MP prin VGA, capacitate stocare 2 HDD maxim 8TB (neincluse). Suporta Audio over Coaxial pentru camere CVI. Alarma 4 IN / 1 OUT. Accepta camere ce au protocol ONVIF si RTSP. Suporta detectia miscarii si UMD (16 canale).
Model / producator: UNV (Uniview)
Inregistrare: 8MP lite@8fps 5MP lite@12fps 4MP lite/1080P@15fps 720P@30fps
Camere suportate: HDTVI/AHD/CVI CVBS. 4 ch. IP max 8MP
Compresie: H.265 H.264
Redare: 1-16 canale sincronizate
Intrari: 32 x BNC; 1 x audio LAN 10/100/1000 2 x USB 1 x RS485
Iesiri: HDMI – 3840 x 2160 VGA – 1920 x 1080 1 audio
Stocare: 2 x HDD SATA max. 8TB (neinclus)
Stream: 8MP Lite/5MP Lite/4MP Lite /1080P/720P/D1
Alimentare: 12V DC
Consum: max. 38W (fara HDD)
Dimensiuni: 380 A 326 A 53 mm
Alarma IN/OUT: 4 IN / 1 OUT
Audio: 32 x audio over coaxial CVI 1 x analogic RCA
Greutate: max. 2.6 Kg (fara HDD)
Temperatura operare: -10A°C ~+55A°C
Latime banda: intrare 80Mbs / iesire 160Mbs
