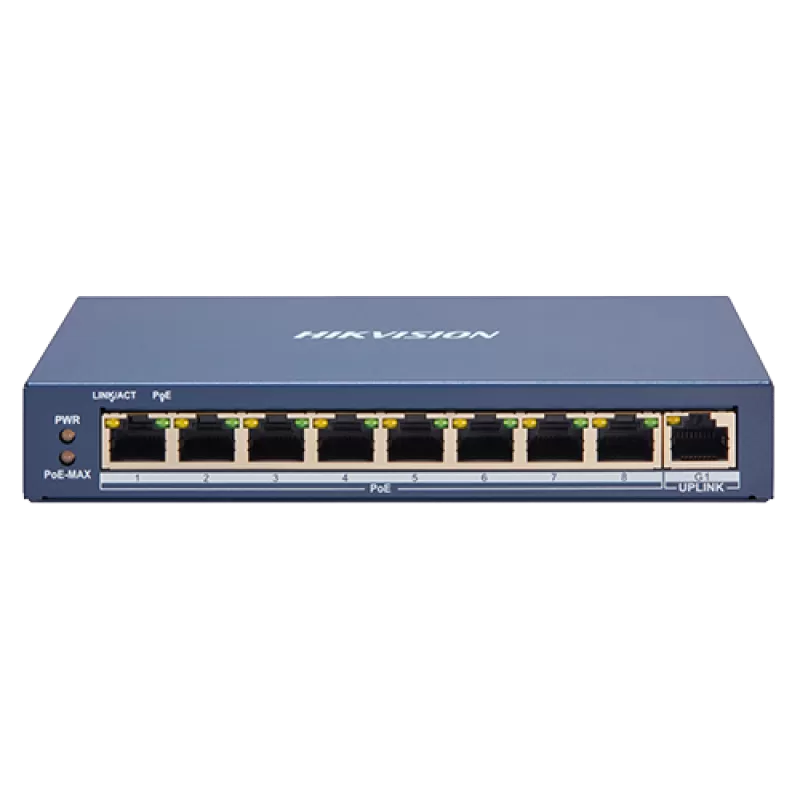

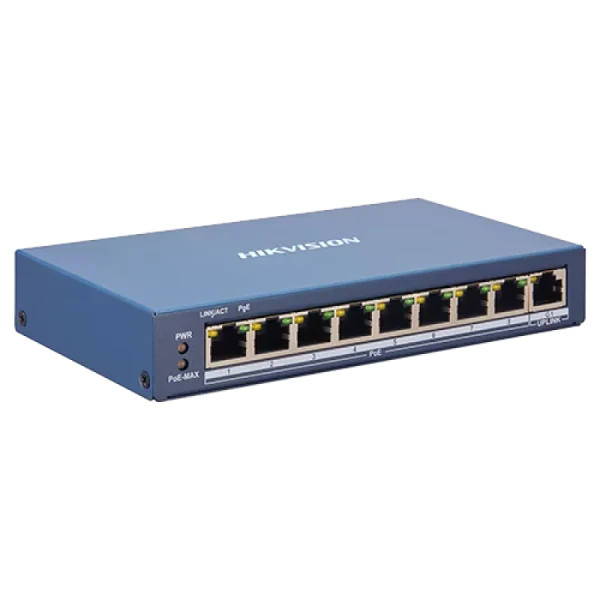

Switch-ul DS-3E1309P-EI de la Hikvision are urmatoarele caracteristici:
- Standarde: Conform cu standardele Ethernet IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab;
- Standarde PoE: IEEE 802.3at/af pentru porturile PoE;
- Transmisie extinsa: Suporta transmisie pe distante de pana la 300 m;
- Performanta: Forwarding la viteza maxima si comutare tip store-and-forward;
- Constructie durabila: Carcasa metalica de inalta rezistenta.
Producator: HIKVISION
Numar porturi PoE: 8 porturi RJ45 10/100Mbps
Putere PoE: 110W – (14W/port) 30W max/port
Porturi Uplink: 1 x RJ45 10/100/1000Mbps
Mod functionare: Standard (100m) / CCTV (300m)
Protectie: ESD descarcari electrice anti-interferente
Tensiune alimentare: 48 VDC 2.5 A (alimentator inclus)
Temperatura operare: -10A° ~ +40 A°C
Dimensiuni: 170 mm A 27.6 mm A 93.1 mm
Greutate: 550 gr.
Consum: <120W (inclusiv PoE)
Capacitate switch: 3.6 Gbps
Management: Network topology management alarm push network health monitor
