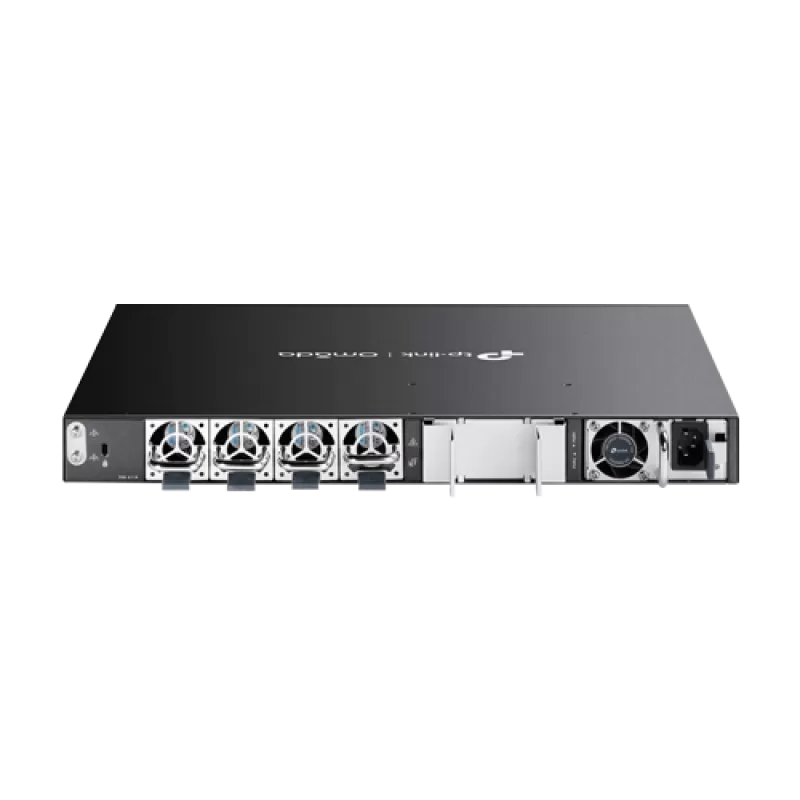

Switch-ul are urmatoarele caracteristici cheie:
- 24× porturi Gigabit RJ45 si 4× sloturi 10 Gbps SFP+;
- Buget PoE total de pana la 720W;
- Phisical stacking de pana la 8 unitati pentru redundanta si performanta;
- Functii L3: RIP, OSPF, ECMP, VRRP, PIM-DM, PIM-SM si DHCP Server/Relay;
- Strategii de securitate: ACL, Port Security, Aparare DoS, 802.1X;
- Disponibilitate ridicata cu doua surse de alimentare interne fixe, VRRP si ERPS;
- Managementul centralizat in cloud prin intermediul controller-ului Omada SDN;
- Management independent prin web, CLI, SNMP si RMON.
Producator: TP-Link Omada
Numar porturi PoE: 24 x RJ45 Gigabit
Capacitate switch: 128 Gbps
Alimentare: 100-240V AC (2 x module hot swappable)
Temperatura operare: -5A°C ~ +45A°C
Dimensiuni: 440 mm x 420 mm x 44 mm 1U
Packet Forwarding Rate: 95.2 Mpps
MAC address table: 32K
Jumbo frame: 9 KB
Memorie flash: 2 x 4 MB NOR + 8 GB EMMC
Memorie DRAM: 4 GB DDR4
Procesor: Dual-Core ARM 1.5GHz
Interfata consola: 1 x RJ45 1 x USB-C
Interfata USB: 2 x USB 2.0
Buffer: 3 MB
Consum: max. 916.6W
Porturi Uplink: 4 x SFP+ 10G
Putere PoE: max. 402W/720W (in functie de surse)
