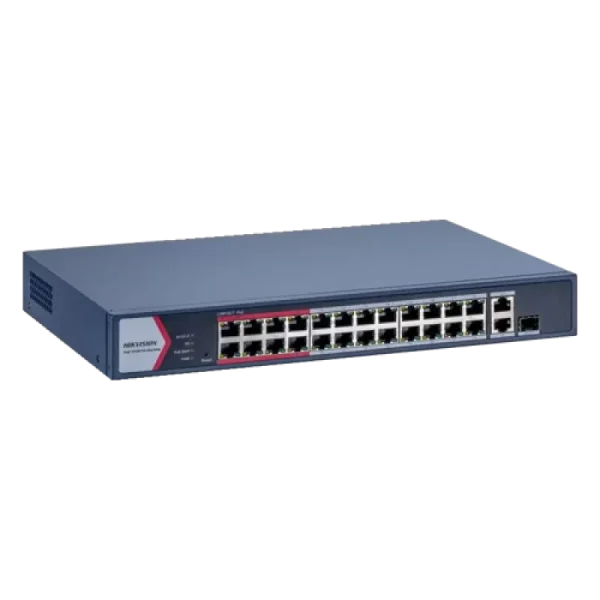

Switch-ul DS-3E1326P-EI-M de la Hikvision are urmatoarele caracteristici:
- Standarde: Conform cu standardele Ethernet IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab si IEEE802.3z;
- Standarde PoE: IEEE 802.3at/af pentru porturile PoE;
- Transmisie extinsa: Suporta transmisie pe distante de pana la 300 m;
- Performanta: Forwarding la viteza maxima si comutare tip store-and-forward;
- Management inteligent: Monitorizare topologie retea, notificari alarme si monitorizare sanatate retea;
- Constructie durabila: Carcasa metalica de inalta rezistenta.
Producator: HIKVISION
Numar porturi PoE: 24 porturi 10/100Mbps
Putere PoE: total 230W max. 30W/port
Mod functionare: Standard (100m) / mod EXTENDED (300m)
Protectie: descarcari electrice 6 KV
Capacitate switch: 8.8 Gbps
Tensiune alimentare: 100~240 V AC max 4A
Temperatura operare: 0A° ~ +45A°C
Standard PoE: IEEE 802.3af IEEE802.3at
Greutate: 2.13 Kg.
Porturi Uplink: 1 A Gigabit combo 1 A Gigabit RJ45
Consum: max. 250W
Dimensiuni: 335 A 44.5 A 226 mm
Management: Network topology management alarm push network health monitor Video Control and Preview;
Tabela adrese MAC: 16 K
Transmitere pachet date: 6.55 Mpps
Memorie Cache: 4 Mbits
