Camera IP BOX de interior Hanwha fara lentila, senzor 1/1.8" 6M CMOS, rezolutie 5MP, ICR, 0.07lux, 12VDC, 24VAC, PoE
CAMERA IP BOX 2MP
2.441,75 lei
CAMERA IP ALL-IN-ONE DE EXTERIOR 2MP, IR 20M, LENS
1.872,02 lei
Indisponibil
Livrare gratuită peste 1000 lei

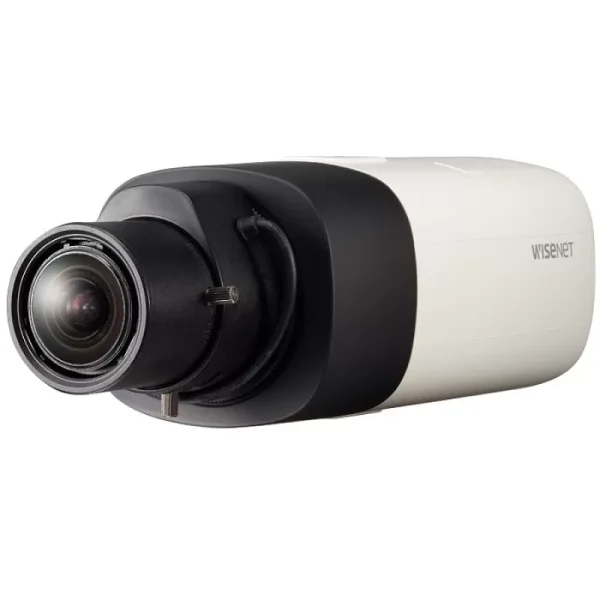

CAMERA IP BOX 5MP
2.871,30 lei
Disponibilitate: Indisponibil
Disponibilitate: Indisponibil
Disponibil la cerere — solicită o ofertă personalizată
Descriere
Camera IP BOX de interior Hanwha fara lentila, senzor 1/1.8" 6M CMOS, rezolutie 5MP, ICR, 0.07lux, 12VDC, 24VAC, PoE
Informații suplimentare
| Iesiri alarma |
Da |
|---|---|
| Tip produs | |
| Codec proprietar |
WiseStream |
| Prelucare ceata |
Defog |
| Contor de pixeli |
Da |
| Corectie distorsiuni |
LDC Lens Distorsion Correction |
| Consum |
Max. 7.5W (12VDC), Max. 8.5W (PoE), Max. 8.5W (24VAC) |
| Slot card |
Da |
| Brand |
HANWHA VISION |
| Intrari alarma |
Da |
| Alimentare VAC 24 |
Da |
| Iesire video |
CVBS: 1.0 Vp-p /75Q compozit |
| Alimentare PoE | |
| Functii analiza video inteligenta |
Sabotaj, vagabondaj, detectie directie, detectie defocalizare, detectie ceata, trecere barieria virtuala, intrare/iesire zona predefinita, aparitie/disparitie, detectie audio, detectie faciala, detect |
| Analiza video inteligenta |
Da |
| Protocol |
TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Viteza obturator electronic |
Minim / Maxim / Anti flicker (2 ~ 1/12,000sec) |
| Balans de alb |
ATW / AWC / Exterior / Interior / Manual |
| Zone private |
32 zone |
| Detectie de miscare |
Da (8 zone) |
| Stabilizare de imagine |
Da, giroscop incorporat |
| Reducere de zgomot |
SSNRV |
| Nume camera |
85 caractere |
| Marire contrast |
SSDR |
| Compensare dinamica lumina |
WDR (120dB) |
| Compensare lumina |
BLC/HLC |
| Control focus |
Manual |
| Iluminare minima color si alb/negru |
Color : 0.07Lux (F1.2, 1/30sec), B/W : 0.007Lux (F1.2, 1/30sec) |
| Iluminare minima |
0.07 lux |
| Sistem de scanare |
Progresiv |
| Pixeli efectivi |
2,616(H) x 1,976(V) |
| Pixeli |
3,096(H) x 2,094(V) |
| Tip senzor |
1/1.8" 6M CMOS |
| Temperatura / umiditate functionare |
-10°C ~ +55°C / <90% RH |
| Alimentare VDC 12 |
Da |
| Culoare / material |
Fildesiu/ Aluminiu, Plastic |
| Metoda control bitrate |
H.265/H.264: CBR/VBR, MJPEG: VBR |
| Web Viewer |
Google Chrome 54, MS Edge 38, Mozilla Firefox |
| Limba pagina web |
Engleza, Romana |
| Interfata programare aplicatie |
ONVIF profile S/G, SUNAPI (HTTP API), Wisenet Open Platform |
| Acces simultan maxim |
20 utilizatori in modul unicast |
| Metoda Streaming |
Unicast / Multicast |
| Securitate |
HTTPS(SSL) Login Authentication, Digest Login Authentication, IP Address Filtering User access Log, 802.1x authentication |
| IP |
IPv4, IPv6 |
| Capacitate streaming |
Streaming multiplu (Pana la 10 profile) |
| Dimensiuni (WxHxD) |
73.1 x 66.6 x 147.8mm |
| Ajustare calitate imagine |
H.265/H.264 : ajustare nivel compresie si nivel control bitrate presetat; MJPEG : ajustare nivel calitate |
| Ethernet |
RJ-45 (10/100BASE-T) |
| Protocol RS-485 |
Samsung-T/E, Pelco-P/D, Sungjin, Panasonic, Honeywell, AD, Vicon, GE, Bosch |
| Interfata control |
RS-485 |
| Tip card memorie |
SD / SDHC / SDXC |
| Alarma |
1 in/1 out |
| Comunicare audio |
Bidirectional |
| Format compresie audio |
G711 u-law, G726(ADPCM), G726 |
| Reducere efect ceata (Defog) |
Da |
| Rata maxima de frame-uri |
60fps la toate rezolutiile |
| Format compresie video |
H.265, H.264, MJPEG |
| Greutate |
420g |
| CMS |
SmartViewer, SSM |
| Temperatura / umiditate depozitare |
-50°C ~ +60°C / <90% RH |
